Apple Juice Machine

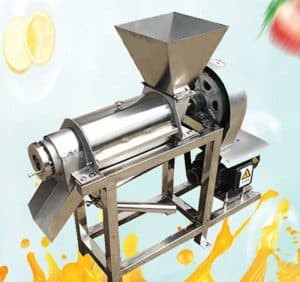

Automatic Apple Juice Extractor Machine with Crusher

Automatic Apple Juice Extractor Machine with Crusher is used to extract juice from the whole apple. It is with crushing function which allows feeding the whole apple to machine. R ...
Product Details

Automatic-Apple-Juice-Extractor-Machine-with-Crushing-Function

Automatic Apple Juice Extractor Machine with Crusher is used to extract juice from the whole apple. It is with crushing function which allows feeding the whole apple to machine. Romiter Apple Juice Making Machine is made of stainless steel, which is healthy, durable and easy to clean. It adopts a screw extrusion principle, which having a high juice yield. With the crushing device mounted, this juicer machine crushes the materials first before extracting the juice. There is no need for extra crusher. the residues and juice are separated automatically after juice extractor and the filter screen has various mesh sizes for your choice. Nowadays, It is widely used for juicing apple, pineapple, pear, orange, lemon, strawberry, blueberry, mulberry, cranberry, buckthorn, grape, kiwi fruit, passion fruit, watermelon, papaya, tomato, carrot, cucumber, beet, garlic, ginger, spinach, celery, aloe, cactus, etc.

Working Principle of Apple Crushing and Juicer Machine

The crushing device is installed above the feed hopper of the screw juicer. There are four groups of fly knives and one group of dead knives inside the crushing device. The fly knives driven by the motor rotate between the dead knives, thus crushing the materials into 2-5 mm pieces, which then enter the spiral juicing system directly.
The main component of the spiral juicing system is the screw. The screw shaft rotates clockwise in the direction of the residue outlet. The bottom diameter of the screw increases gradually while the thread pitch gradually decreases. When the materials are propelled by the screw, with the reduction of the volume of the screw chamber, the materials are pressed. The juice flows into the juice holding device through the filter screen, while the residues are expelled through the gap between the screw and the pressure adjusting head.

The juice yield of the vegetable juicer machine can be adjusted by rotating the handwheel bearing support. When turning it clockwise in the direction of the feed hopper, the pressure adjusting head will move left and the gap will be smaller, otherwise, the gap will be larger. As the gap size changes, the residue discharge resistance will change, thus changing the juice yield of the fruit juice machine.
juice extracted by fruit crushing juicer machine

Automatic-Apple-Crushing-and-Juicer-Machine-Structure-Drawing

Maintenance of Apple Juice Making Machine

  1. After the fruit juice machine enters the normal working condition, please adjust the gap to the maximum and then reduce gradually to the ideal condition. If the raw material doesn’t come out from the crusher, clean it with the residue removal rod.
  2. After every shift, please wash the filter screen with water and brush to remove the residue from the vegetable juicer machine manually. Wash the whole machine with hot water after finishing juicing.

Specification of Apple Juice Extractor Machine

Model RM-JUEX500C RM-JUEX1000C RM-JUEX1500C
Treatment capacity 500kg/h 1000kg/h 1500kg/h
Overall dimension(mm) 1000*330*1220 1150*380*1220 1500*480*1400
Weight(kg) 115 155 280
Power(kw) 1.5+3KW 1.5+4.5 3-7.5KW
Screw diameter(mm) 88 125 175
Filter screen aperture(mm) 0.6 0.6 0.6
Rotate Speed(r/min) 380 380 380
Voltage(V) 380V 50HZ 380V 50HZ 380V 50HZ
Material Stainless steel 304 Stainless steel 304 Stainless steel 304

Working Video of Fruit Juice Extractor Machine

Company Profile

Romiter Machinery Co., Ltd. is a market-leading designer and a manufacturer of apple processing machines. Romiter has an excellent technical support team, including highly experienced machinists and service technicians. Now, Romiter Group provides a complete apple processing machine solution, which includes but is not limited to apple washing cleaning machine, apple cutting machine, apple core removing machine, apple juicer machine, apple core removing and chip cutting machine, apple sorting machine, apple peeling machine, apple chips production line and apple packing machine

Romiter Group can provide customized products for customers. Welcome to contact us for more information.
